Superior Image Quality
Extra-Long Detection Range
Outstanding Battery Life
Top-Tier Optics
Smooth 8X Digital Zoom
Digital Detail Enhancement Tech

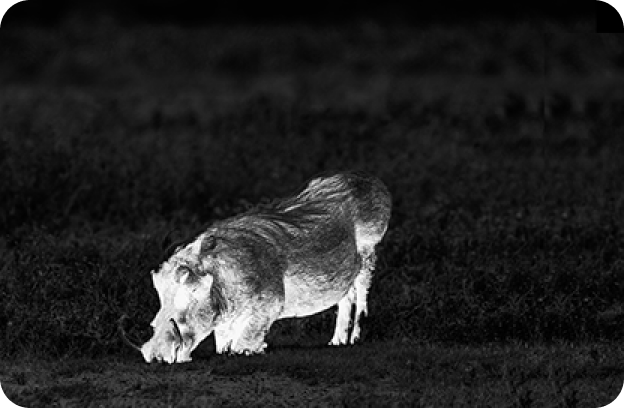

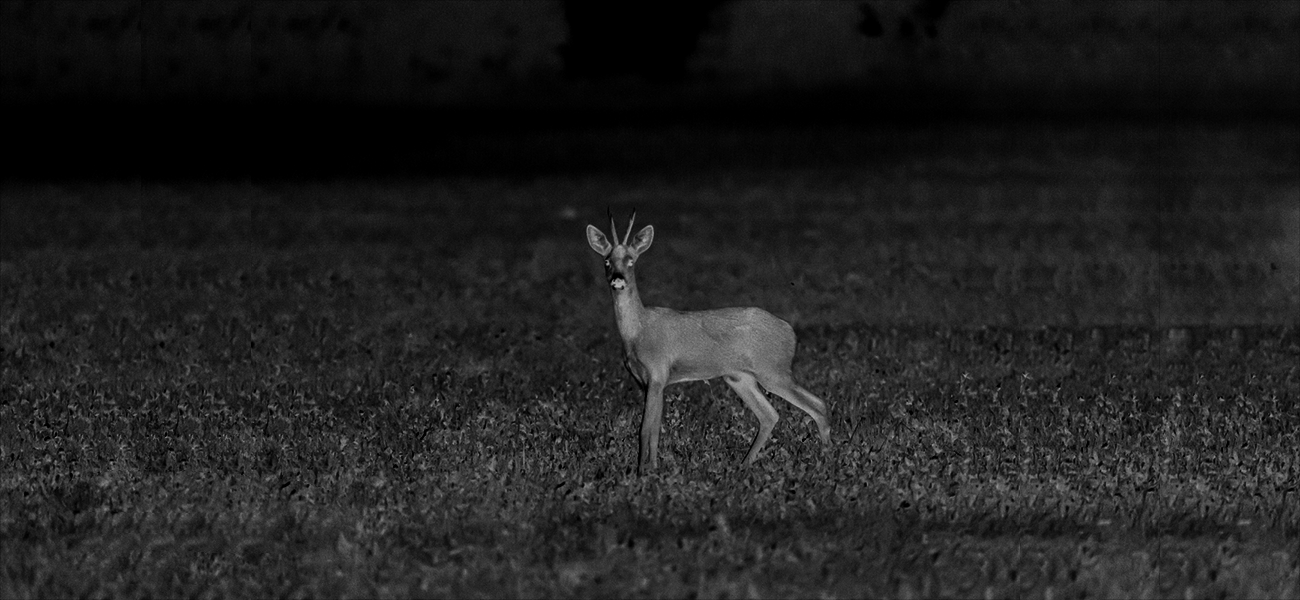

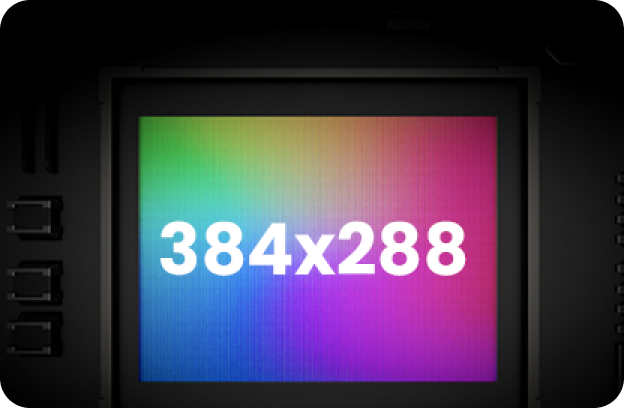

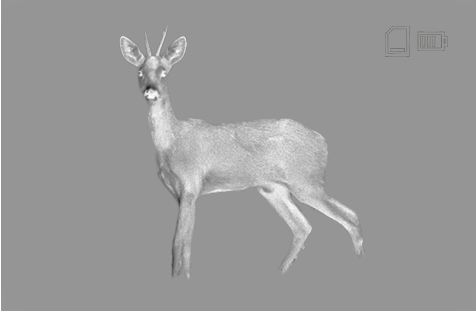

Featuring a vanadium oxide 384*288 infrared detector and a pristine 800*600 OLED display, TNV30 offers stunning image quality with vivid details, allowing users to easily identify whether you are targeting a boar or a lead sow.

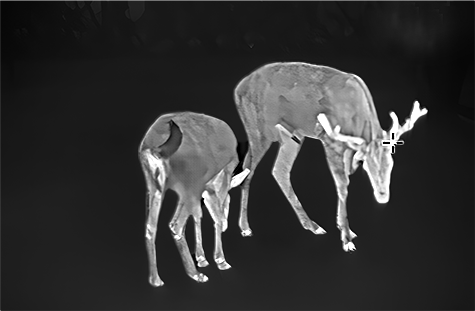

The advanced Digital Detail Enhancement (DDE) technology highlights minute temperature differences and reveals intricate wilderness scenes with higher clarity, even for low-contrast objects like grass and water.

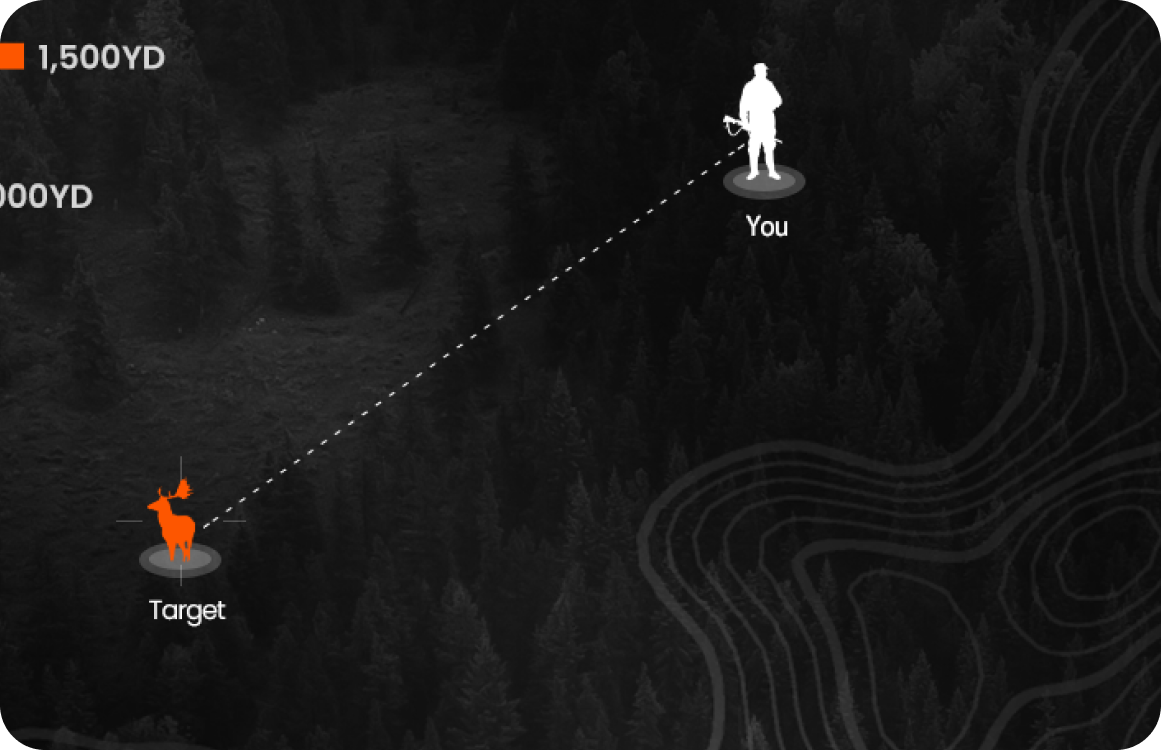

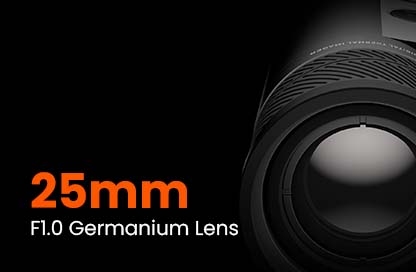

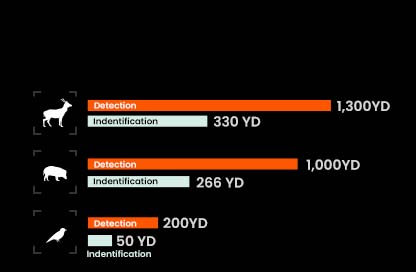

Equipped with a powerful infrared detector and a high-aperture, long-focal Germanium lens, TNV30 easily captures heat signature up to 1,300 yards away with better identification on various animals.
-3.png?w=375&h=268)

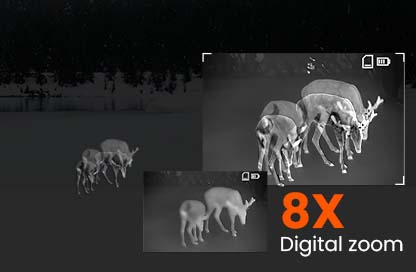

TNV30 features a smooth 8X digital zoom that allows users to enlarge the picture to easily identify the target within 660 yards in pitch darkness when they cannot physically move in closer to the target.

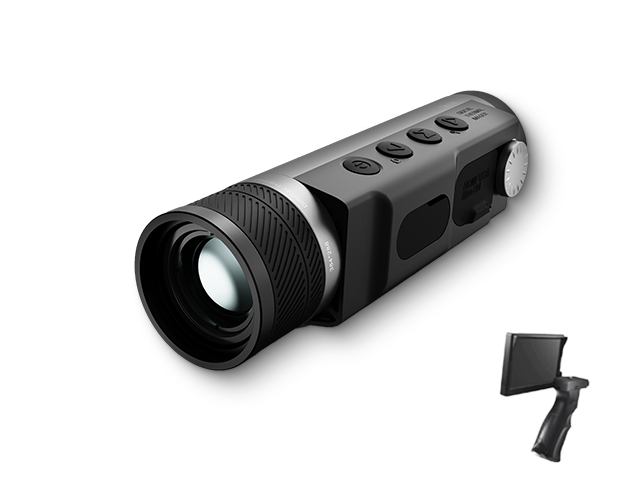

Connect TNV30 to a handheld 4K monitor and enjoy a superior thermal imaging with enhanced clarity and added comfort.
*Handheld 4K monitor sold separately.
Upgrade from 16GB to 32GB, offering more storage than the industry standard. This ensures you can store more photos while hunting or observing wildlife, giving you plenty of options to choose from when sharing your experience.
The BMP format, unlike JPG, preserves every detail without pixel compression, allowing you to observe the fine details of an animal's fur with exceptional clarity. Your game appears more lifelike, making your photos look as real as the moment itself.
The high-definition 800x600 resolution ensures you can clearly observe and identify animals, helping you avoid losing track of your target or misidentifying game, so you won’t waste your hunting trip.
Designed to perform in extreme conditions, this device operates reliably in temperatures ranging from -30°C to +60°C. Whether you're in snowy terrains or desert heat, you can count on it without worrying about damage.
Specs
User Maunal
Sensor
384*288
17µm
NETD≤40mK
Objective lens
25mm/1.0
Magnification, x
1x,2x,4x,8x
Field of view
14.9°*11.2°
Detection range, YD
1300 YD
Resolution
384*288
Pixel pitch, µm
17µm
NETD,mK
≤40 mK
Frame rate, Hz
50
Lens Focal Length
25mm/1.0
Magnification, x
1x,2x,4x,8x
Field of view,degrees
14.9*11.2
Type
OLED
Resolution, pixels
800*600
Detection range, YD
1300 YD
Video / photo resolution, pixels
800*600
Video / photo format
BMP
Built-in memory, GB
32
Frequency, GHz
/
Degree of protection, IP code
IP65
Operating temperature range, ℃
-20℃ to +60℃
Battery type
Li-ion Battery
Capacity, mAh
4500
Operating time on battery pack (at t=22℃)
15h
Dimensions, mm
178*51*47
Weight, kg
0.32
TNV60
TNV30
Sensor
Optics
Display
Range Performance
Video/Photograph
Bluetooth/WIFI
Environmental Characteristic
Power Supply
Weight & Size
Sensor
Resolution
640*512
384*288
Pixel pitch, µm
12µm
17µm
NETD, mK
≤40 mK
/
Frame rate, Hz
50
50
Optics
Lens Focal Length
25mm/ 1.0
25mm/1.0
Magnification, x
1x,2x,4x,8x
1x,2x,4x,8x
Field of view,degrees
17.6*14
14.9*11.2
Display
Type
OLED
OLED
Resolution, pixels
800*600
800*600
Range Performance
Detection range, YD
1500 YD
1300 YD
Video/Photograph
Video / photo resolution, pixels
800*600
800*600
Video / photo format
BMP
BMP
Built-in memory, GB
32
32
Bluetooth/WIFI
Frequency, GHz
/
/
Environmental Characteristic
Degree of protection, IP code
IP65
IP65
Operating temperature range, ℃
-20℃ to +60℃
-20℃ to +60℃
Power Supply
Battery type
Li-ion Battery
Li-ion Battery
Capacity, mAh
4800
4500
Operating time on battery pack (at t=22℃)
15h
15h
Weight & Size
Dimensions, mm
178*51*47
178*51*47
Weight, kg
0.33
0.32
